此前分享了通过引入外部的 GO 程序来实现 SQL 到 DSL 的转换的文章，然而在后续测试过程中发现部分条件的转换仍有问题，例如不支持 IS 和 IS NOT。所以在这段时间，决定自行编写一个更为完善的转换工具以支撑自身项目。
目前我所知晓的用于解析 SQL 的工具，像 Apache Calcite 和 Druid 皆已进行了尝试，并且查看了这两个代码包下的解析 API ，认为 Druid 的更加灵活丰富，而且网上能找到的资料也比较多，后期出现问题可能也更好解决，所以也决定基于 Druid 来完成本次对 SQL 的解析工作。
1. Druid

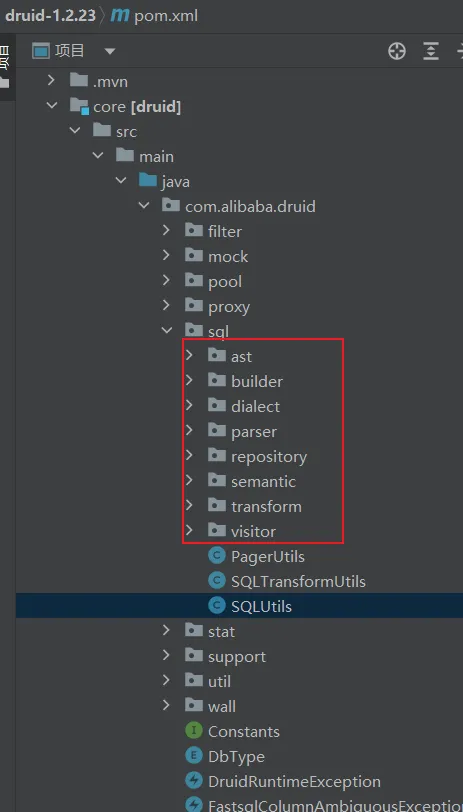

大多数兄弟或许一听到 Druid 就联想到数据库连接池功能，然而在 com.alibaba.druid.sql 包下其实存在很多 API 能够对 SQL 进行解析，而且支持非常丰富的数据源，例如 mysql 、Oracle 、postgresql 等常见数据库，还有像 Hive 、Starrocks 、Presto 等在大数据场景中常用的数据库。
参考资料：
https://github.com/alibaba/druid/wiki/Druid_SQL_AST#1-%E4%BB%80%E4%B9%88%E6%98%AFast
2. 解析目的
解析 SQL 的目的在于获取到 SQL 的各个部分：select 、where 、group by 、order by 、limit 、函数计算等，进而转换为 Elasticsearch 的 DSL 。所以，本篇主要介绍怎样将标准的 mysql 查询语句转换成 DSL 。
3. 抽象语法树（AST）
抽象语法树（Abstract Syntax Tree ，简称 AST ）属于一种树状的数据结构，用于呈现源代码的语法构造。在 SQL 转 AST 的进程中，SQL 语句被拆解为一系列的节点，每个节点代表着 SQL 语句里的一个组成部分，例如：表名、列名、运算符、函数调用等等。这些节点以树形的结构进行组织，根节点代表着整个 SQL 语句，子节点则代表着语句中的子句、表达式等。
例如这个简单的 SQL 查询：
SELECT
name,
age
FROM
users
WHERE
age > 21;那对应的 AST 可以认为是下面的结构.
SelectStatement
├── SelectList
│ ├── Column (name: "name")
│ └── Column (name: "age")
├── FromClause
│ └── Table (name: "users")
└── WhereClause
└── ComparisonExpression
├── Column (name: "age")
├── Operator (value: ">")
└── Literal (value: 21)因此可以从 AST 中获取到想要的节点，并获取节点的描述信息，以上面的 AST 为例，如果想要获取到查询的字段，可以从 SelectList 节点中获取两个字段，如果想获取到表名可以从 FromClause 节点获取，诸如此类......
4. SQL和DSL对应关系
4.1. index
索引名就是 SQL 中的表名，直接获取到from的表名即可，比较简单
4.2. fields
需要返回的字段，也就是在 select 之后的字段，本人这里仅需 user_id 即可，甚至在使用 Spark 查询时，只需要返回的文档 ID 就行（因为 user_id 和文档 ID 是一致的）。
如果要从 select 之后提取字段，可以通过 getSelectList 获取到 SQLSelectItem 对象，然后再进行遍历，通过 sqlSelectItem.getExpr.getName 来获取字段名，关于这部分内容在这里就不再赘述了。
4.3. query
本人这里主要就是进行解析where条件，将不同的逻辑条件转为DSL。Druid解析后的ATS，where节点类型主要分为SQLBinaryOpExpr、SQLInListExpr和SQLBetweenExpr
SQLInListExpr其实就是sql的in，和not in 对应 DSL 为 term 的值为数组列表；SQLBetweenExpr 就是 字段在一个范围段内，对应着就是 range的from和to两个边界；SQLBinaryOpExpr就是二元值，通俗将就是左右两部分，左边为字段，右边为值，例如 a = 1之类的条件判断。诸如此类还有 = ！= > < 等等。
4.4. aggregations
聚合条件，目前需求中还没有需要聚合的条件，如果后面需要会更新。
4.5. sort
排序条件，同上。
5. 源码
废话不多说，直接贴出来源码，由于项目是 scala 为主，所以直接 scala 写了，java项目调用不影响。
5.1. SqlToDslTranslator
package com.dengdz.translator
import com.alibaba.druid.sql.ast.SQLStatement
import com.alibaba.druid.sql.ast.statement.{SQLDeleteStatement, SQLInsertStatement, SQLSelectStatement, SQLUpdateStatement}
/**
*
* 翻译器接口，用于将 SQL 转换为 DSL
*
* <p>接口定义了 SQL 到 DSL 转换器的操作。具体的实现类负责将来自不同数据库的 SQL 查询转换为对应的 DSL 格式。
* 例如：
* <ul>
* <li>{@link MysqlToDslTranslator} 负责将 MySQL 查询转换为 DSL。</li>
* <li>{@link HiveToDslTranslator} 负责将 Hive 查询转换为 DSL。</li>
* </ul>
* 根据需求，还可以提供其他数据库的实现。</p>
*
* @author dengdz
*
*/
trait SqlToDslTranslator {
def handleSelectStatement(stmt: SQLSelectStatement): (String, String) = ???
def handleInsertStatement(stmt: SQLInsertStatement): (String, String) = ???
def handleUpdateStatement(stmt: SQLUpdateStatement): (String, String) = ???
def handleDeleteStatement(stmt: SQLDeleteStatement): (String, String) = ???
def handleOtherStatement(stat: SQLStatement): (String, String) = ???
}
5.2. SqlToDslHandler
package com.dengdz.translator
/**
* <p>语法转换接口，用于定义条件运算的逻辑。具体的条件运算逻辑由子类实现。
* 例如：
* <ul>
* <li>{@link MysqlToDslTranslator} 实现将 MySQL 转换为 DSL</li>
* <li>{@link HiveToDslTranslator} 实现将 Hive 转换为 DSL</li>
* 根据需求，自行实现相应的语法转换器。<p>
*
* @author dengdz
*/
trait SqlToDslHandler {
def greaterThanOrEqual(field: String, value: String): Object
def equality(field: String, value: String): Object
def lessThanOrEqual(field: String, value: String): Object
def greaterThan(field: String, value: String): Object
def lessThan(field: String, value: String): Object
def notEqual(field: String, value: String): Object
def like(field: String, value: String): Object
def notLike(field: String, value: String): Object
def is(field: String, value: String): Object
def isNot(field: String, value: String): Object
def and(left: String, right: String): Object
def or(left: String, right: String): Object
def betweenExpr(field: String, beginValue: String, endValue: String): Object
def inExpr(field: String, values: List[String]): Object
def notInExpr(field: String, values: List[String]): Object
def queryAll(): String
def root(dsl: String): Object
def orRoot(dsl: String): Object
def andRoot(dsl: String): Object
def betweenRoot(dsl: String): Object
def inRoot(dsl: String): Object
def comparisonRoot(dsl: String): Object
}
5.3. MysqlToDslTranslator
package com.dengdz.translator.impl
import cn.hutool.core.util.StrUtil
import cn.hutool.json.JSONUtil
import com.alibaba.druid.sql.ast.SQLExpr
import com.alibaba.druid.sql.ast.expr.SQLBinaryOperator._
import com.alibaba.druid.sql.ast.expr._
import com.alibaba.druid.sql.ast.statement.{SQLExprTableSource, SQLSelectItem, SQLSelectStatement}
import com.alibaba.druid.sql.dialect.mysql.ast.statement.MySqlSelectQueryBlock
import com.dengdz.translator.{SqlToDslHandler, SqlToDslTranslator}
import com.dengdz.utils.Escaping
import java.util
import scala.collection.JavaConverters._
import scala.collection.mutable.ListBuffer
/**
* 实现 MySQL SQL 语句到 DSL 的转换。
* <p>
* <li>1.实现 {@link `SqlToDslTranslator`} 接口中的处理增删改查（CRUD）操作的转换。</li>
* <li>2.实现 {@link `SqlToDslHandler`} 接口中逻辑运算的语法转换。</li>
* <p>
* 我这里是将mysql的标准sql转为DSL语句，后续通过spark查询，也可以实现es API的转换
*
* @author dengdz
*/
class MysqlToDslTranslator extends SqlToDslTranslator with SqlToDslHandler {
/** 索引 */
private var index = ""
/** 返回结果 */
private var resultQuery = ""
/** ******************************** SqlToDslTranslator start *********************************** */
override def handleSelectStatement(stmt: SQLSelectStatement): (String, String) = {
try {
// 获取查询语句
val sqlQuery: MySqlSelectQueryBlock =
stmt
.getSelect
.getQuery
.asInstanceOf[MySqlSelectQueryBlock]
println("sqlQuery -> " + sqlQuery)
// 查询
val select =
sqlQuery.getSelectList
// 条件
val where =
sqlQuery.getWhere
println("selectItems -> " + select)
val fields = getQueryFieldsAndMethods(select)
println("fields -> " + fields)
val query =
handleWhere(where, isRoot = true)
println("query -> " + query)
val fromSqlIdentifierExpr =
sqlQuery
.getFrom
.asInstanceOf[SQLExprTableSource]
.getExpr
.asInstanceOf[SQLIdentifierExpr]
println("fromSqlIdentifierExpr -> " + fromSqlIdentifierExpr)
index = fromSqlIdentifierExpr.getName
println("index -> " + index)
resultQuery = root(query)
} catch {
case e: Exception => throw new RuntimeException("SQL convert DSL failed. Please check the SQL", e)
}
(resultQuery, index)
}
/**
*
* @param sqlExpr
* @param isRoot 是否为根节点
* @return 将 where 条件 转为 DSL 中的 query
*/
private def handleWhere(sqlExpr: SQLExpr, isRoot: Boolean): String = {
sqlExpr match {
case binaryOpExpr: SQLBinaryOpExpr =>
println("SQLBinaryOpExpr")
binaryOpExpr.getOperator match {
case SQLBinaryOperator.BooleanOr =>
println("OR")
handleOr(binaryOpExpr)
case SQLBinaryOperator.BooleanAnd =>
println("AND")
handleAnd(binaryOpExpr)
case _ =>
println("_")
handleValueCompare(binaryOpExpr, isRoot)
}
case inaryOpExpr: SQLInListExpr =>
println("SQLInListExpr")
handleIn(inaryOpExpr, isRoot)
case betweenExpr: SQLBetweenExpr =>
println("SQLBetweenExpr")
handleBetween(betweenExpr, isRoot)
case _ =>
println("_")
queryAll() // for null
}
}
private def handleBetween(sqlBetween: SQLBetweenExpr, isRoot: Boolean) = {
val sqlIdentifierExpr = sqlBetween.getTestExpr.asInstanceOf[SQLIdentifierExpr]
val field = sqlIdentifierExpr.getName
val beginValue = getValue(sqlBetween.getBeginExpr)
val endValue = getValue(sqlBetween.getEndExpr)
var resultStr = betweenExpr(field, beginValue, endValue)
if (isRoot) {
resultStr = betweenRoot(resultStr)
}
resultStr
}
private def getValue(sqlExpr: SQLExpr) = {
sqlExpr match {
case integerExpr: SQLIntegerExpr =>
integerExpr.getNumber.toString
case charExpr: SQLCharExpr =>
s"""${charExpr.getText}"""
case numberExpr: SQLNumberExpr =>
numberExpr.getNumber.toString
case _: SQLNullExpr =>
null
case _ =>
throw new RuntimeException("Unsupported SQLExpr type")
}
}
private def handleIn(inaryOpExpr: SQLInListExpr, isRoot: Boolean) = {
val sqlIdentifierExpr = inaryOpExpr.getExpr.asInstanceOf[SQLIdentifierExpr]
val field = sqlIdentifierExpr.getName
val list = inaryOpExpr.getTargetList.asScala // Convert Java List to Scala Seq
val values = list.map(v => getValue(v))
val resultStr = if (inaryOpExpr.isNot) {
notInExpr(field, values.toList)
} else {
inExpr(field, values.toList)
}
if (isRoot) {
inRoot(resultStr)
} else {
resultStr
}
}
/**
*
* @param binaryOpExpr 二元表达式：左侧为字段 右侧为值
* @param isRoot
* @return 字段值运算，例如 > = < != 等
*/
private def handleValueCompare(binaryOpExpr: SQLBinaryOpExpr, isRoot: Boolean) = {
// 字段名
val field =
binaryOpExpr
.getLeft
.asInstanceOf[SQLIdentifierExpr]
.getName
// 字段值
var value = getValue(binaryOpExpr.getRight)
val resultStr = binaryOpExpr.getOperator match {
/** 等于 */
case Equality =>
equality(field, value)
/** 不等于 */
case NotEqual =>
notEqual(field, value)
/** 大于 */
case GreaterThan =>
greaterThan(field, value)
/** 大于等于 */
case GreaterThanOrEqual =>
greaterThanOrEqual(field, value)
/** 小于 */
case LessThan =>
lessThan(field, value)
/** 小于等于 */
case LessThanOrEqual =>
lessThanOrEqual(field, value)
/** 正则匹配 */
case Like =>
// 字符转义
value = Escaping.escapeQueryChars(value)
like(field, value)
/** 正则不匹配 */
case NotLike =>
notLike(field, value)
/** is */
case Is =>
is(field, value)
/** is not */
case IsNot =>
isNot(field, value)
}
if (isRoot) {
comparisonRoot(resultStr)
} else {
resultStr
}
}
private def handleAnd(binaryOpExpr: SQLBinaryOpExpr) = {
val (leftStr, rightStr) = handleLeftAndRight(binaryOpExpr)
val resultStr = and(leftStr, rightStr)
binaryOpExpr.getParent match {
case parent: SQLBinaryOpExpr if parent.getOperator == SQLBinaryOperator.BooleanAnd =>
resultStr
case _ =>
andRoot(resultStr)
}
}
private def handleOr(binaryOpExpr: SQLBinaryOpExpr) = {
val (left, right) = handleLeftAndRight(binaryOpExpr)
val resultStr = or(left, right)
binaryOpExpr.getParent match {
case parentExpr: SQLBinaryOpExpr if parentExpr.getOperator == SQLBinaryOperator.BooleanOr => resultStr
case _ => orRoot(resultStr)
}
}
private def handleLeftAndRight(binaryOpExpr: SQLBinaryOpExpr) = {
val leftExpr = binaryOpExpr.getLeft
val rightExpr = binaryOpExpr.getRight
val leftStr = handleWhere(leftExpr, isRoot = false)
val rightStr = handleWhere(rightExpr, isRoot = false)
(leftStr, rightStr)
}
/**
* @param selectItems
* @return 返回 SQL 中查询的字段以及查询方式
*/
private def getQueryFieldsAndMethods(selectItems: util.List[SQLSelectItem]): List[(String, String, String)] = {
val fields: ListBuffer[(String, String, String)] =
new ListBuffer[(String, String, String)]
selectItems.asScala.foreach { sqlSelectItem =>
// 别名
val alias: String = sqlSelectItem.getAlias
println("alias -> " + alias)
// 操作类型
val sqlExpr: SQLExpr = sqlSelectItem.getExpr
println("sqlExpr -> " + sqlExpr)
sqlExpr match {
/** 查询全部字段 */
case _: SQLAllColumnExpr =>
println("SQLAllColumnExpr")
fields += (("*", null, ""))
/** 查询特定字段 */
case sqlIdentifierExpr: SQLIdentifierExpr =>
println("SQLIdentifierExpr")
fields += ((sqlIdentifierExpr.getName, alias, ""))
case _ =>
throw new RuntimeException("未知操作类型!")
}
}
fields.toList
}
/** ******************************** SqlToDslTranslator end *********************************** */
/** ------------------------------- SqlToDslHandler start ------------------------------------ */
override def and(left: String, right: String): String = tuple(left, right)
override def or(left: String, right: String): String = tuple(left, right)
private def tuple(left: String, right: String): String = {
if (left.isEmpty || right.isEmpty) {
left + right
} else {
s"$left,$right"
}
}
override def betweenExpr(field: String, begin: String, end: String): String = {
s"""{
| "range": {
| "$field": {
| "from": "$begin",
| "to": "$end"
| }
| }
|}""".stripMargin
}
override def inExpr(field: String, values: List[String]): String = {
s"""{
| "terms": {
| "$field": [${formatListValues(values)}]
| }
|}""".stripMargin
}
override def notInExpr(field: String, values: List[String]): String = {
s"""{
| "bool": {
| "must_not": {
| "terms": {
| "$field": [${formatListValues(values)}]
| }
| }
| }
|}""".stripMargin
}
private def formatListValues(values: List[String]): String = {
values.map(v => s""""$v"""").mkString(",")
}
override def greaterThanOrEqual(field: String, value: String): String = {
s"""{
| "range": {
| "$field": {
| "from": "$value"
| }
| }
|}""".stripMargin
}
override def equality(field: String, value: String): String = {
s"""{
| "match_phrase": {
| "$field": "$value"
| }
|}""".stripMargin
}
override def lessThanOrEqual(field: String, value: String): String = {
s"""{
| "range": {
| "$field": {
| "to": "$value"
| }
| }
|}""".stripMargin
}
override def greaterThan(field: String, value: String): String = {
s"""{
| "range": {
| "$field": {
| "gt": "$value"
| }
| }
|}""".stripMargin
}
override def lessThan(field: String, value: String): String = {
s"""{
| "range": {
| "$field": {
| "lt": "$value"
| }
| }
|}""".stripMargin
}
override def notEqual(field: String, value: String): String = {
s"""{
| "bool": {
| "must_not": [
| {
| "match_phrase": {
| "$field": {
| "query": "$value"
| }
| }
| }
| ]
| }
|}""".stripMargin
}
override def like(field: String, value: String): String = {
s"""{
| "query_string": {
| "default_field": "$field",
| "query": "*$value*"
| }
|}""".stripMargin
}
override def notLike(field: String, value: String): String = {
s"""{
| "bool": {
| "must_not": {
| "match_phrase": {
| "$field": {
| "query": "$value"
| }
| }
| }
| }
|}""".stripMargin
}
override def is(field: String, value: String): String = {
s"""{
| "bool": {
| "must_not": {
| "exists": {
| "field": "$field"
| }
| }
| }
|}""".stripMargin
}
def isNot(field: String, value: String): String = {
s"""{
| "bool": {
| "must": {
| "exists": {
| "field": "$field"
| }
| }
| }
|}""".stripMargin
}
override def root(dsl: String): String = {
println(" ROOT ------------------->")
val builder = new StringBuilder(s"""{"query" : $dsl""")
builder.append("}")
JSONUtil.parseObj(builder.toString()).toString
}
override def orRoot(dsl: String): String = {
s"""{
| "bool": {
| "should": [$dsl]
| }
|}""".stripMargin
}
override def andRoot(dsl: String): String = must(dsl)
override def betweenRoot(dsl: String): String = must(dsl)
override def inRoot(dsl: String): String = must(dsl)
override def comparisonRoot(dsl: String): String = must(dsl)
private def must(dsl: String): String = {
s"""{
| "bool": {
| "must": [$dsl]
| }
|}""".stripMargin
}
override def queryAll(): String = {
"""{
| "match_all": {}
|}""".stripMargin
}
/** ------------------------------- SqlToDslHandler end ------------------------------------ */
}
5.4. SqlToDslConverter
package com.dengdz.utils
import com.alibaba.druid.sql.ast.SQLStatement
import com.alibaba.druid.sql.ast.statement.{SQLDeleteStatement, SQLInsertStatement, SQLSelectStatement, SQLUpdateStatement}
import com.alibaba.druid.sql.dialect.mysql.parser.MySqlStatementParser
import com.alibaba.druid.sql.parser.ParserException
import com.dengdz.translator.SqlToDslTranslator
import com.dengdz.translator.impl.MysqlToDslTranslator
import com.dengdz.utils.Kind.{Kind, MYSQL}
/**
*
* @param sql 待转换sql
* @param kind sql类型
*
* @author dengdz
*/
class SqlToDslConverter(sql: String, kind: Kind) {
private var sqlStatement: SQLStatement = _
private var sqlToDslTranslator: SqlToDslTranslator = _
parseSQL(sql, kind)
/**
* 转换 SQL
*
* @return
*/
def convertSqlToDsl(): (String, String) = {
println("sqlStatement ->" + sqlStatement)
sqlStatement match {
/** 查 */
case stmt: SQLSelectStatement =>
sqlToDslTranslator.handleSelectStatement(stmt)
/** 增 */
case stmt: SQLInsertStatement =>
sqlToDslTranslator.handleInsertStatement(stmt)
/** 改 */
case stmt: SQLUpdateStatement =>
sqlToDslTranslator.handleUpdateStatement(stmt)
/** 删 */
case stmt: SQLDeleteStatement =>
sqlToDslTranslator.handleDeleteStatement(stmt)
/** 其余操作 */
case _ =>
sqlToDslTranslator.handleOtherStatement(sqlStatement)
}
}
/**
* 解析 SQL 语句
*
* @param sql
* @return
* @throws ParserException
*/
@throws[ParserException]
def parseSQL(sql: String, kind: Kind) = try {
// 将SQL字符串解析为AST
kind match {
case MYSQL =>
sqlStatement = new MySqlStatementParser(sql).parseStatement
sqlToDslTranslator = new MysqlToDslTranslator()
}
} catch {
case e: ParserException =>
println(s"解析SQL失败: $sql")
e.printStackTrace()
throw e
}
}
5.5. Escaping
package com.dengdz.utils
/**
* 字符转义
* @author dengdz
*/
object Escaping {
def escapeQueryChars(s: String): String = {
if (s == null || s.trim.isEmpty) {
return s
}
val specialChars = Set('\\', '+', '-', '!', '(', ')', ':', '^', '[', ']', '\"', '{', '}', '~', '*', '?', '|', '&', ';', '/', '.', '$')
val sb = new StringBuilder
s.foreach { c =>
if (specialChars.contains(c) || Character.isWhitespace(c)) {
sb.append('\\').append('\\')
}
sb.append(c)
}
sb.toString()
}
}
5.6. Kind
package com.dengdz.utils
/**
* @author dengdz
*/
object Kind extends Enumeration {
type Kind = Value
val MYSQL, HIVE = Value
}5.7. Demo
package com.dengdz
import com.dengdz.utils.{Kind, SqlToDslConverter}
object Demo {
def main(args: Array[String]): Unit = {
val sql = "select user_id from demo where user_id is not null"
val converter =
new SqlToDslConverter(sql = sql, kind = Kind.MYSQL)
val tuple =
converter.convertSqlToDsl()
println(tuple)
}
}
评论区
